Spark Extinguishing

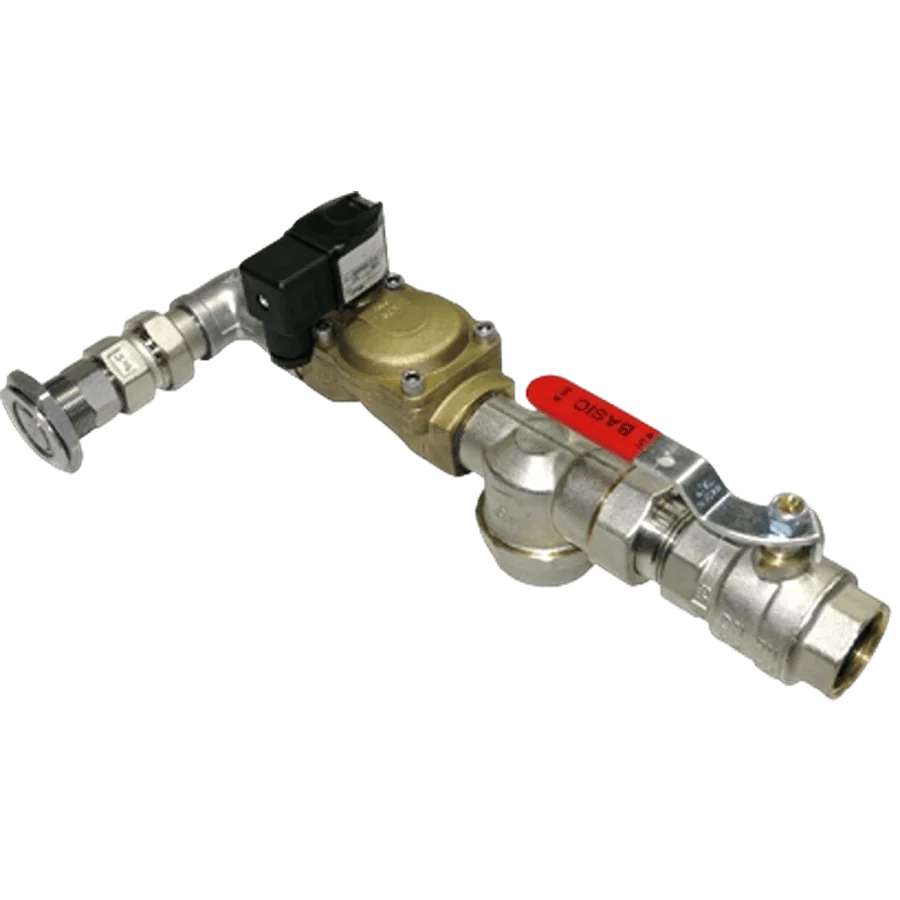

Extinguishing Devices – SP1D-R

  • Automatic extinguishing devices are used for fast, reliable extinguishing of sparks detected in mechanical and pneumatic conveyor systems.
  • There are various versions of the automatic extinguisher, differing in the number of extinguishing valves and nozzles used.
  • The following extinguishing devices are available, depending on the diameter of the suction pipe or shaft: · SP1D-R for up to 400mm pipe diameter and SP2D-R for up to 800mm pipe diameter.

WANT MORE TECHNICAL DETAILS? DOWNLOAD OUR DATASHEET.

INTERESTED OR HAVE QUESTIONS? GET IN TOUCH WITH US NOW!

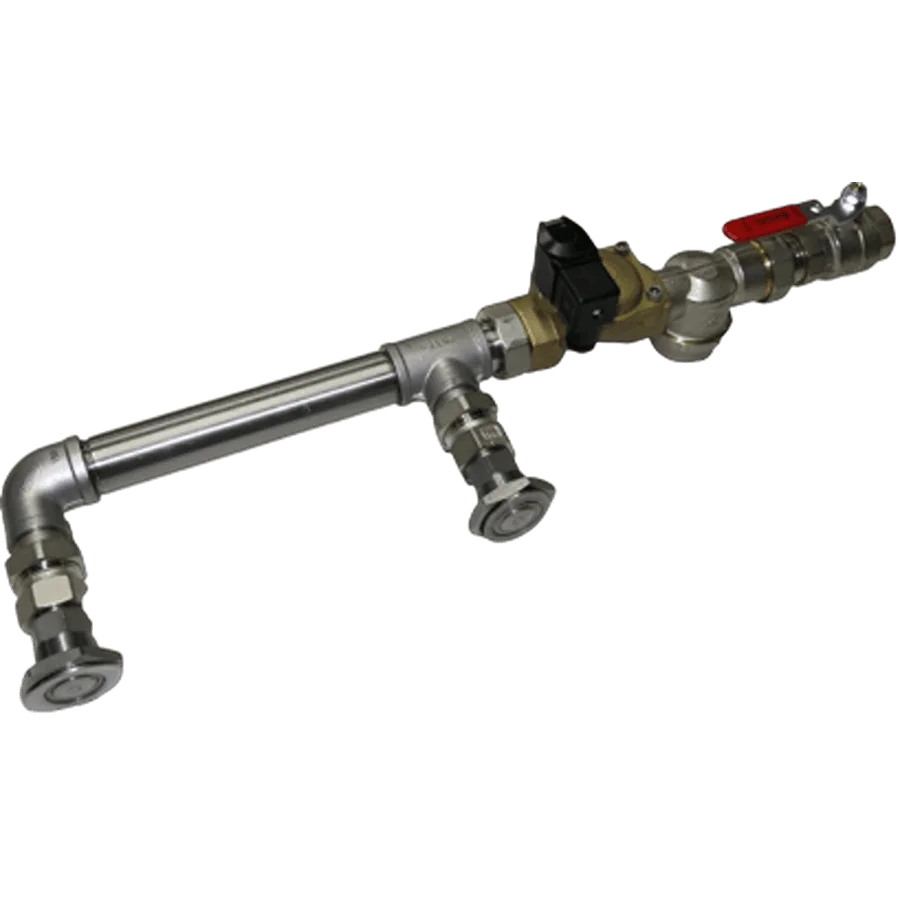

Extinguishing Devices- SP2D-R

  • Every millisecond counts. T and B Electronic water extinguishing nozzles are closed during normal operation.
  • This prevents product and dust buildup on the nozzle opening which could affect the reaction time, say with nozzles that are fully open during normal operation.
  • In this way, we can also provide solutions with lower water pressures than other manufacturers.
  • The following extinguishing devices are available, depending on the diameter of the suction pipe or shaft: SP1D-R + SP2D-R for up to 1200mm pipe diameter and SP2D-R + SP2D-R for up to 1600mm pipe diameter

WANT MORE TECHNICAL DETAILS? DOWNLOAD OUR DATASHEET.

INTERESTED OR HAVE QUESTIONS? GET IN TOUCH WITH US NOW!

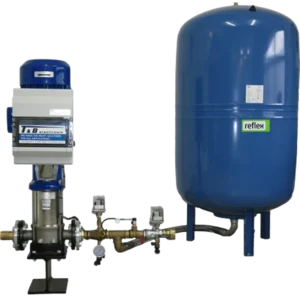

Pressure Booster System WDS

  • A pressure booster system WDS is required in all cases where a flow pressure of extinguishing water of Pmin =7 bar to the extinguishing system cannot be guaranteed.
  • The WDS system consists principally of multi-stage vertical centrifugal pump and a membrane pressure vessel (admission pressure 7 bar).
  • Extinguishing water used is automatically replaced after each extinguishing procedure.
  • The VB supply container is only required if a supply of at least 240 litres/minute cannot be guaranteed for the centrifugal pump.
  • The supply container also serves to provide a biological separation between town water supply and extinguishing water.
Pressure Booster System Wds

WANT MORE TECHNICAL DETAILS? DOWNLOAD OUR DATASHEET.

INTERESTED OR HAVE QUESTIONS? GET IN TOUCH WITH US NOW!

Flow Switch DFW

Flow Switch Dfw
  • In conjunction with the standard fitted extinguishing water control at the spark alarm unit, the flow switch monitors the extinguishing devices and their operation.
  • By installing the flow switch, the following conditions are reported from the spark alarm unit:
  • Light bar:1 = Water supply fault2 = Alarm on, no water3 = Water on, no alarm4 = Water on, no production

INTERESTED OR HAVE QUESTIONS? GET IN TOUCH WITH US NOW!

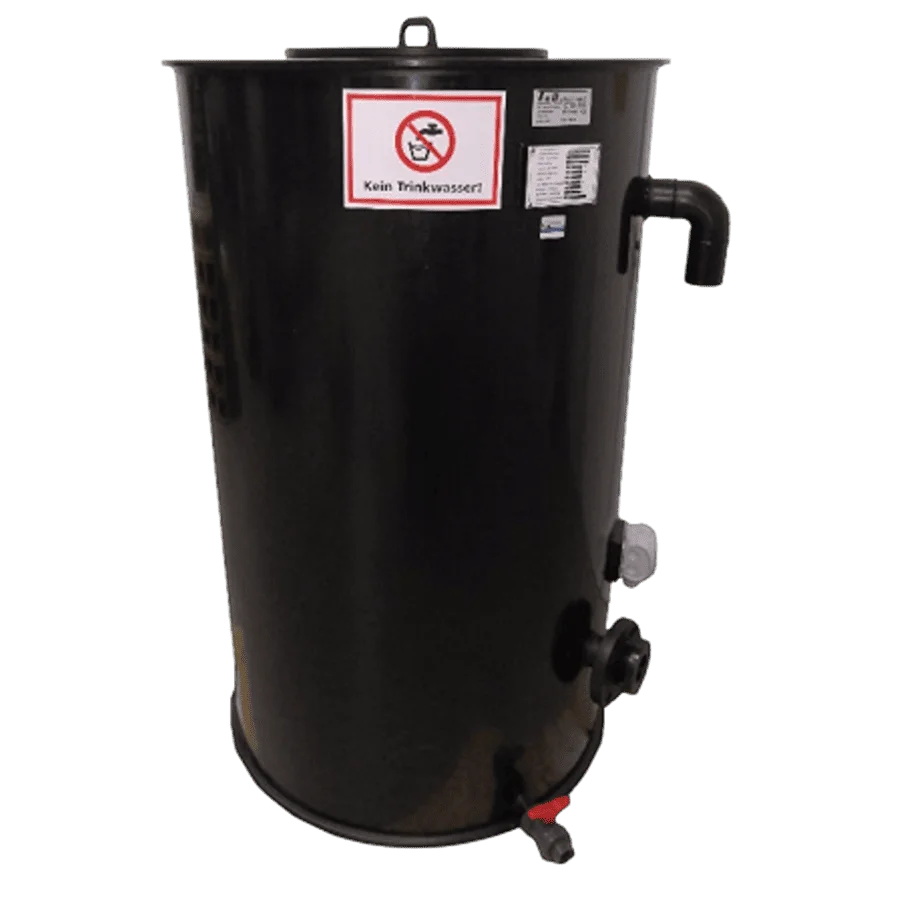

Water Tank VB1/VB2

  • Water tanks are used, if a water flow of 180 l/min at 2 bar cannot be ensured by the available water supply.
  • Additionally by the pressure-free inlet a biological separation between city water and extinguishing water is achieved, i.e. it cannot flow back possibly contaminated water into the potable water supply system.
Water Tank Vb1 Vb2

WANT MORE TECHNICAL DETAILS? DOWNLOAD OUR DATASHEET.

INTERESTED OR HAVE QUESTIONS? GET IN TOUCH WITH US NOW!

Waterpipe Heating

Waterpipe Heating
  • Self-regulating heating band HB1: If extinguishing pipes are laid in areas prone to frost, they must be protected against freezing. By means of the self-regulating heating band, the extinguishing system is warmed up electrically.
  • Connection set AG1: The connection set (shrink-on sleeve), together with the relevant connection box, is used for connecting the self-regulating heating band to the normal installation cable.

INTERESTED OR HAVE QUESTIONS? GET IN TOUCH WITH US NOW!

Outdoor Thermostat TH1

  • The outdoor thermostat is used to switch the individual sections of the heating band on and off if the outside temperature falls too far (t = < 5° C).
Outdoor Thermostat Th1

INTERESTED OR HAVE QUESTIONS? GET IN TOUCH WITH US NOW!

Heating Band Monitor HBW3

Heating Band Monitor Hbw3
  • The heating band monitor controls the separate heated extinguishing water circuits.
  • The heating band monitor monitors the separate heated extinguishing water circuits.
