IEP-Brilex Type GE – Domed Explosion Vent

IEP-Brilex Type GE Explosion Vent Variations

The GE Explosion Vents are easy to install and require minimal maintenance, saving you time and effort. Their robust construction and innovative design make them an indispensable component for any explosion risk management system. Trust in the efficiency and effectiveness of our GE Explosion Vents to protect your facility and personnel from potential catastrophe.

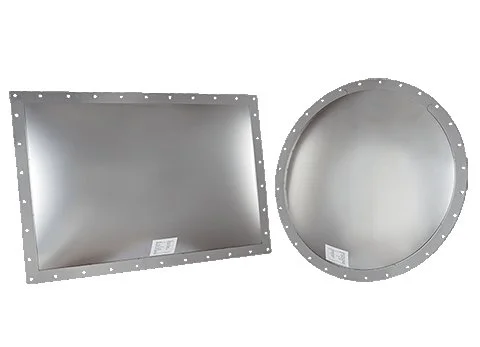

Iep Brilex Explosion Vent Ge Rectanglar And Round

Specifications

  • Material: 304 SS or 316L SS
    Integrated Gaskets: EPDM, White Silicone,
  • Food Grade Silicone, Klinger, Ceramic, others on request.
  • Burst Pressures (Pstat): Standard 0.1 bar @ 20 deg C, other (lower or higher) certified burst pressures available.
  • Burst Tolerance: Standard +/- 10% for 0.1 bar Pstat and above.
  • Sizes: Rectangular (229 x 229 to 1130 x 1130) (for larger sizes up to 1000 x 2000 see type KE), and Circular (DN 200 – DN1100), special sizing available.
  • Insulation: Optional with Rockwool in Aluminium cover or Armaflex.
  • Venting Efficiency: 100% depending on Kst and Pred values.

Design Variations

  • Z – Design – for enhanced applications with laser cut slits in the flanged area and vacuum support ring. Type GE – Z: IEP-Brilex’s Z Option – suitable for specialised pulsing applications, cyclones and other difficult applications.
  • H – Design – for Hygenic applications with laser cut slits in the flanged area. Type GE – H: IEP-Brilex’s hygienic design explosion vent with Integrated Food Grade Silicone gaskets.

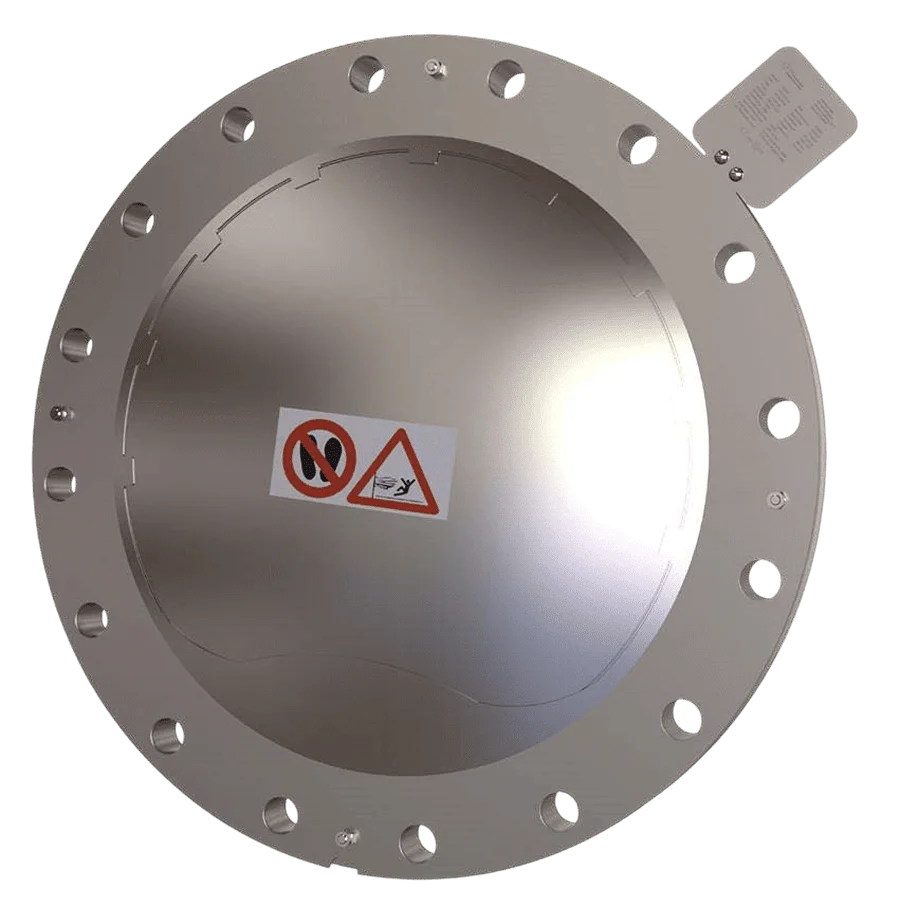

  • GT – Design – for Higher Temperature applications. Type GE – GT: IEP-Brilex’s Generator Type Explosion Vent for Very High Temperature Resistance mainly for as explosions in Engine air intake and exhaust explosion venting applications.
  • R – Design – a new design in 2023 that does not require an outlet flange. Type GE-R.

Engine installations require an explosion vent that withstands positive pressure cycling at elevated temperatures for a elongated periods. Additionally, the explosion pressures generated are very high so the GT vents are strengthened to ensure that the vent  does not fragment. Standard GT features are pressure spike control and integrated ceramic gaskets.

WANT MORE TECHNICAL DETAILS? DOWNLOAD OUR DATASHEET.

INTERESTED OR HAVE QUESTIONS? GET IN TOUCH WITH US NOW!

IEP-Brilex Type GE Explosion Vent – Venting Efficiency Test

IEP Brilex’s patented domed explosion vent is a fine laser cut, single-section design with pressure spike control and integrated gaskets. Suitable for dust collector applications with high vacuum resistances from -1,000 to -5,000 mm WC for rectangular designs and up to full vacuum resistance (-10,000 mm WC)  for circular designs. Available with insulation up to 100mm. Venting efficiency to 100%. Certified for gas and dust explosion relief venting under specific conditions and parameters.

The Type GE Explosion Vents is the ultimate solution for managing explosion risks with utmost efficiency and safety. With a proven track record of excellence, our explosion vents provide reliable protection against hazardous explosions.

INTERESTED OR HAVE QUESTIONS? GET IN TOUCH WITH US NOW!

Engineered to perfection, our GE Explosion Vents are designed to release excess pressure and prevent devastating consequences.

Manufactured using state-of-the-art technology and premium quality materials, our explosion vents offer optimal performance, ensuring maximum safety and peace of mind. The GE Explosion Vents are meticulously designed to withstand even the most demanding conditions, making them ideal for a wide range of industries.

INTERESTED OR HAVE QUESTIONS? GET IN TOUCH WITH US NOW!

With our GE Explosion Vents, you can mitigate explosion hazards and maintain a secure environment for your operations. A team of experts at the manufacturing plant ensures that every vent undergoes rigorous testing to meet the highest quality standards, guaranteeing reliability and durability.

Featuring advanced venting capabilities, our explosion vents effectively reduce the risk of explosion-related damages, safeguarding both personnel and equipment. The GE Explosion Vents are specifically engineered to rapidly release pressure, redirecting the force away from the vulnerable areas.
