Averaging Pitot Tubes for Steam and Steam Flow Measurement

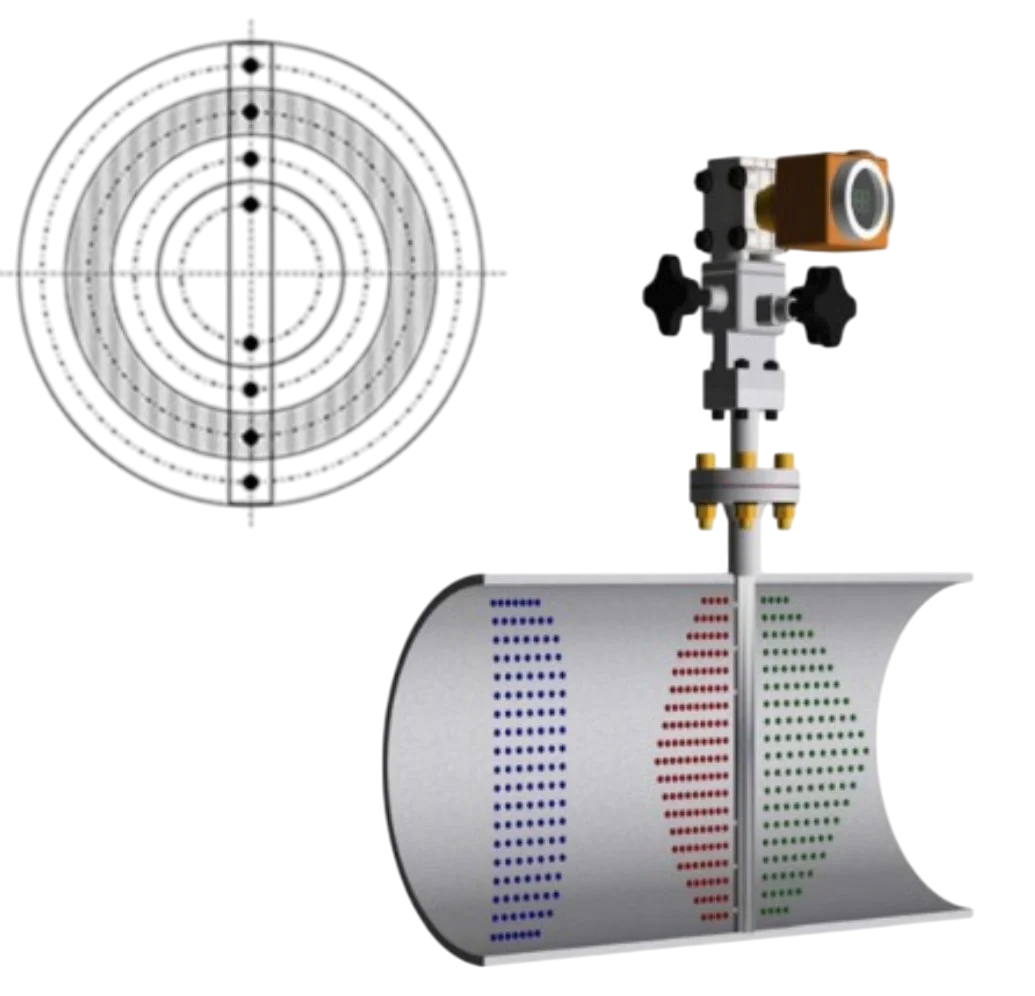

SKI SDF-Steam Sensors are commonly used to measure the flow or heat quantity of superheated or saturated steam

Ski Sdf Sensors For Steam Cmc
Ski Sdf Sensors Averaging Pitot Tubes For Steam Cmc
Ski Sdf Sensors For Steam Cmc
Ski Sdf Sensors Averaging Pitot Tubes For Steam Cmc

SDF Sensors For Steam

For over 35 years, SDF Steam Sensors have proven to be reliable, stable, and accurate in the field.

SDF Sensors can be used in difficult conditions due to their robust technology and simple measurement principle, and they offer significant advantages over other measuring technologies, such as ease of installation and long-term measuring stability.

Additional benefits include bidirectional flow measurement and the integration of temperature and pressure measurements to calculate the current operating density. This is aided by the AccuMind® flow computer, which can calculate the current steam and heat quantities.

The FASTLOK steam version of this product line allows for insertion or retraction of the SDF-sensor without an interruption of plant operation, offers four versions of the sensor, including a high-pressure option up to PN 100, and can be equipped with an integral gear drive for easier handling.

Ski Sdf Sensors For Steam Cmc

INTERESTED OR HAVE QUESTIONS? GET IN TOUCH WITH US NOW!

RFQ

Technical specifications of SDF Steam Flow Device

Ski Sdf Sensors Averaging Pitot Tubes For Steam Cmc
  • Measured Quantity: Differential pressure; Optional: Static pressure, Temperature
  • Measured Medium: High, middle and low pressure steam; Saturated and superheated steam
  • Temperature Range: Standard: up to 450 °C; Optional: up to 650 °C
  • Pressure Range: up to PN 320 (flanged) / ANSI #2500; Upon request: welded design
  • Diameter Range: DN 25 … DN 3000; 1″ up to 120″
  • Required Inlet and Outlet Pipe Straight Runs: 7xD inlet, 3xD outlet
  • Material: Standard: 1.4404 (AISI 316L); Other Options and custom materials: 1.4571, 1.5415, 1.7353, 1.7380, 1.4922; ASTM A 182 Gr. F1, F11, F12, F22, F91
  • Error Limit k-factor: ±1% of measured value; Reproducibility: ±0.1% of measured value
  • Measurement Range: up to 1:40 (in relation to max. flow)
