SMART MEASUREMENT – Metal Tube Variable Area Flow Meters
Metal tube variable area flow meters, or rotameters, such as the rugged ALVAMT from Smart Measurement, are ideal for high pressure, high temperature and other demanding flow applications where safety is a concern. Features include: mechanical readouts for use in locations where power is not available or in hazardous areas; analog and digital LCD local display options, multiple process connection options; several available materials of construction for metering of aggressive fluids and corrosion resistance; and HART enabled 4-20mA output to provide for remote monitoring and control. The ALVAMT’s excellent repeatability makes it a good choice for batching applications. For versions without electronic output, no power supply is required. The ALVAMT’s low-pressure drop provides additional value by allowing for economical pump selection.

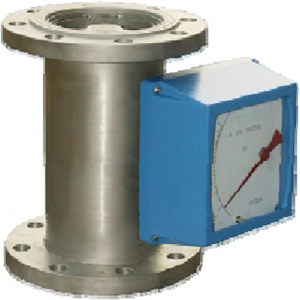

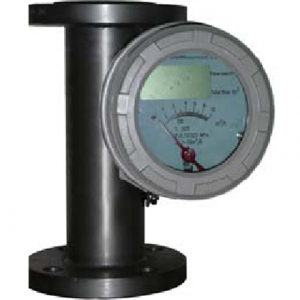

Metal Tube Variable Area Flow Meter, ALVAMT
- Versatile design may be used for gas, steam, and liquids
- High resolution and fast response time; – 5 to 50 msec
- Wide temperature range from -40 up to 750 °F (-40 to 400 °C)
- High pressure operation up to 6100 psi (420 bar)
- Process connections including NPT threads, ANSI flanged, & Tri-Clamp available
- Electronics either intrinsically safe EEx ia II CT5, or Ex proof EEx d II CT6
- Wide array of materials available including Hastelloy B & C,Ti, Cu, Al, etc.
- PTFE and other liner materials available
- NIST-traceable calibration
