Compact Spark Extinguishing System

This compact spark extinguishing system FLA 4-1 is specifically designed for mobile dust extractors and provides comprehensive fire protection through advanced spark detection and automatic suppression technology. The prefabricated extinguishing system comes ready for self-assembly, making installation straightforward for industrial facilities.

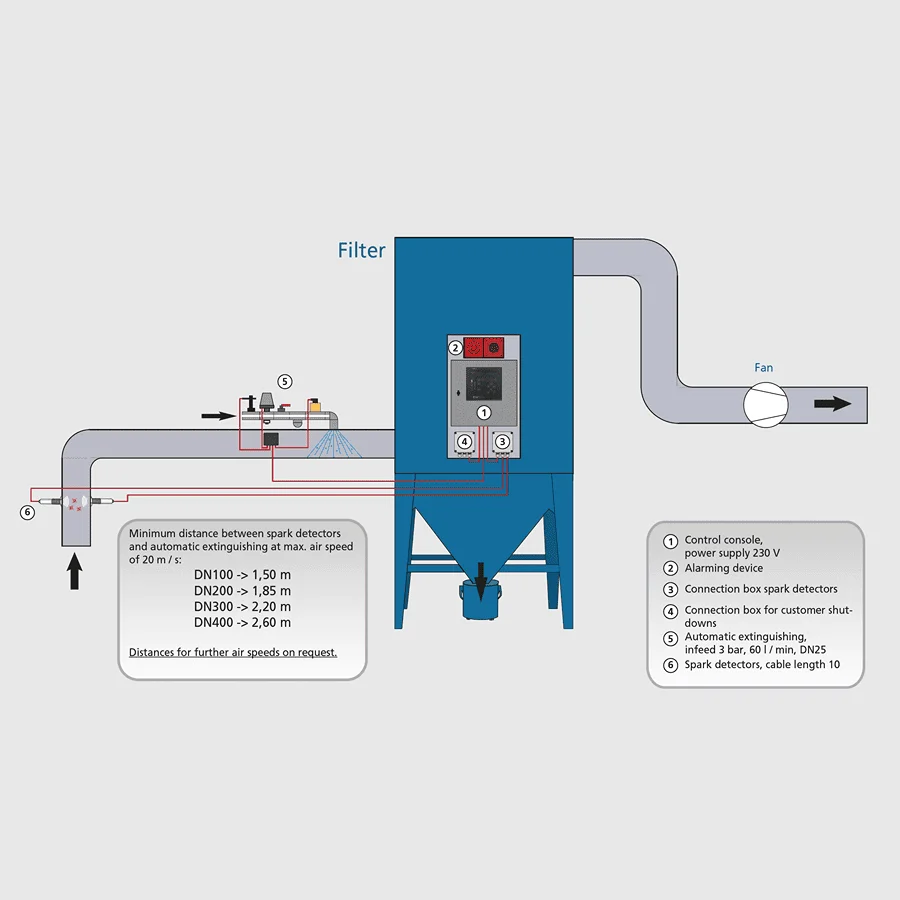

• Compact spark extinguishing system FLA 4-1 designed specifically for mobile dust extractors
• Prefabricated extinguishing system for self-assembly – no complex installation required
• Integrated filter and fan system for complete dust extraction capability
• Control console with 230V power supply
• Spark detectors with 10m cable length included
• Automatic extinguishing system (infeed 3 bar, 60 l/min, DN25)
• Connection box for customer shutdowns
• Connection box for spark detectors
• Professional alarming device
• The compact spark extinguishing system accommodates maximum air speeds of 20 m/s with specific minimum distances (refer to the datasheet below) between spark detectors and automatic extinguishing components.

WANT MORE TECHNICAL DETAILS? DOWNLOAD OUR DATASHEET.
