Metaglas vs. Tempered Glass for Process Viewing

METAGLAS® vs Toughened/Tempered Glass

A safer, stronger alternative for industrial sight glass applications

How METAGLAS® Is Different

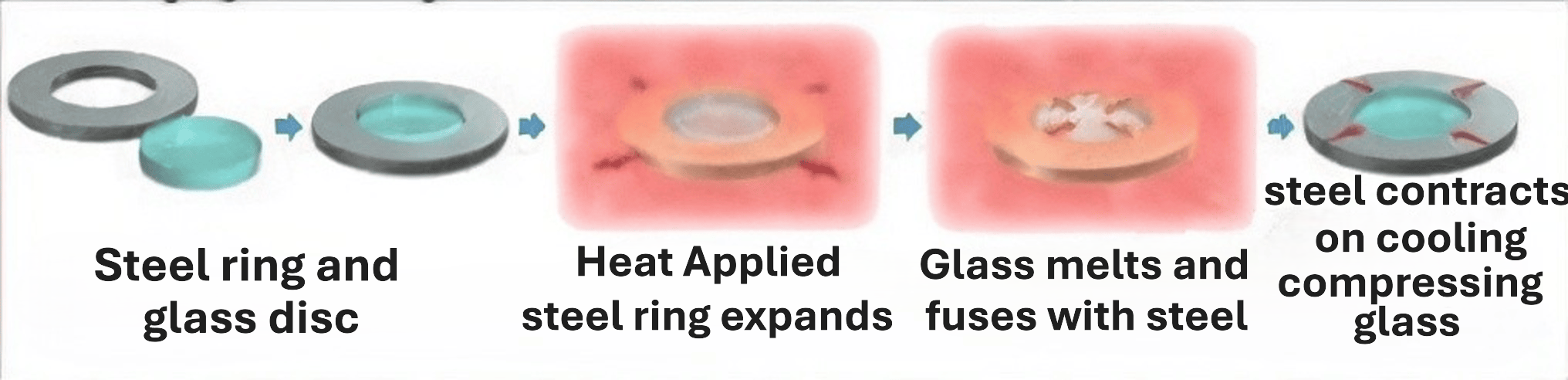

METAGLAS® is manufactured by melting circular glass inside a metal frame, permanently fusing the glass and metal together.

As the assembly cools, controlled thermal expansion creates a uniform compressive stress throughout the glass. This mechanically prestressed structure makes METAGLAS® the strongest and most secure sight glass available.

Key Advantages of METAGLAS®

Resistant to total failure due to mechanically prestressed glass
Exceptional resistance to pressure, impact and temperature
Stress-free installation — tolerant of bending and overtightening
Reusable — can be removed, cleaned and reinstalled indefinitely

VIEW DETAILS

The Problem with Conventional Sight Glass

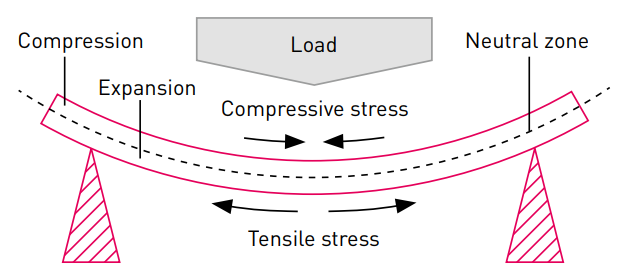

Conventional toughened sight glasses are sensitive to stress, bending and impact. When overloaded they can fail catastrophically without warning — creating serious safety risks and costly unplanned shutdowns.

METAGLAS® eliminates this failure mode through its unique glass-to-metal fusion process, delivering unmatched strength and reliability.

METAGLAS® vs Toughened Glass

Feature	Toughened Glass	METAGLAS®
Surface Damage	Can cause sudden catastrophic failure	Scratches or pitting do not affect safety
Residual Stress	Re-bolting increases stress and failure risk	Repeated re-bolting does not affect integrity
Pressure Resistance	Lower pressure rating	Higher pressure rating for same thickness
Impact Resistance	Shatters into fragments on impact	High impact resistance — remains leak-tight
Bending Sensitivity	Highly sensitive to uneven bolt torque	Extremely tolerant to uneven torquing
Failure Mode	Cracks completely through	May crack locally but remains sealed
Erosion	Erosion weakens glass and causes failure	Remains leak-tight even with high erosion
Cleaning	Often requires replacement	Can be cleaned and reused indefinitely

Typical Applications

METAGLAS® replaces conventional sight glass in:

Pressure vessels and tanks
Weld neck and nozzle flanges
Flow indicators and viewing ports
Sanitary and hygienic systems (Tri-Clamp, NA-Connect)
Retrofit upgrades for existing installations

Technical Performance

Operating temperature: -30°C to +280°C (up to 300°C)
Operating pressure: 64 bar (TÜV), up to 1000 bar depending on design
Materials: Duplex stainless steel, carbon steel, Hastelloy and others
Manufactured to DIN 7079 and Pressure Equipment Directive standards

METAGLAS® delivers unmatched safety, durability and reusability compared to toughened glass. For critical sight glass applications where failure is not an option, METAGLAS® provides superior protection and longer service life.
