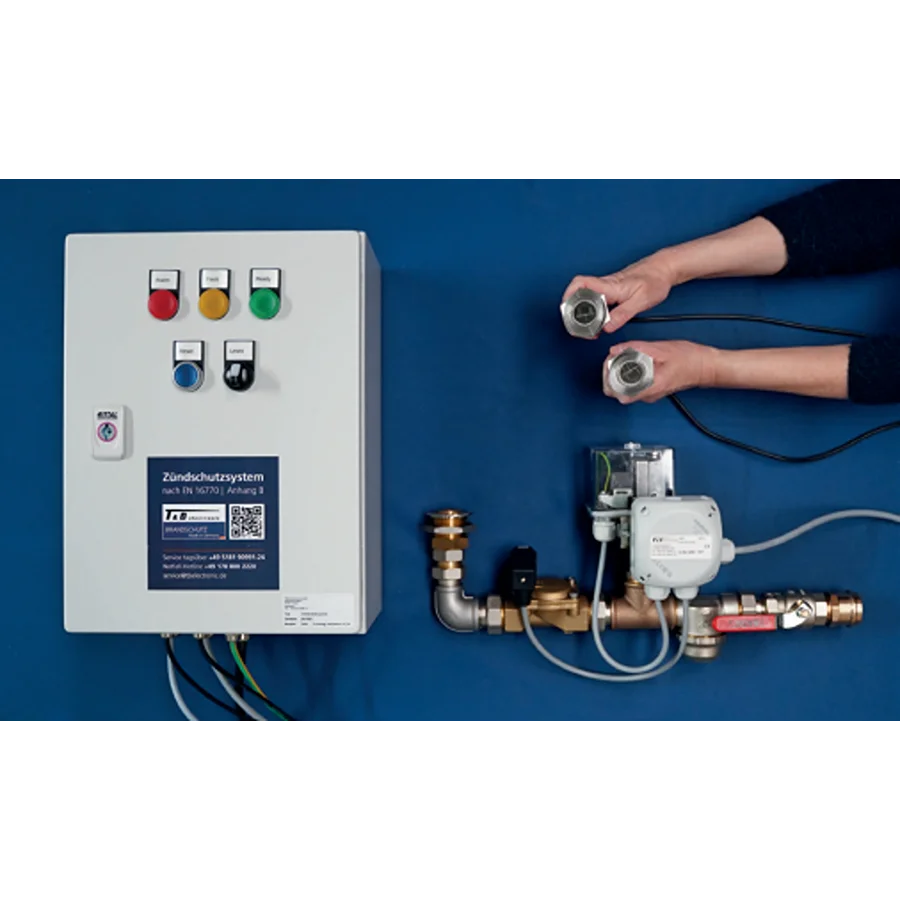

Plug and Play ZSS Compact Fire Prevention System

The T and B Fire Prevention Plug and Play ZSS Ready-to-Connect Ignition Protection System is an advanced safety solution designed specifically for dust extractors and woodworking machines. Compliant with the latest DIN EN 16770 standard, it offers reliable, automatic spark detection and extinguishing to prevent fires and explosions in industrial dust extraction systems.

This smart system is engineered for easy installation, enabling plant operators to self-install with minimal effort while ensuring maximum safety and compliance.

• Fully compliant with DIN EN 16770 for dust extractors.
• Certified by VdS (spark detectors, extinguishing system) and FM-approved control unit.
• Meets the requirements of Annex B for active ignition protection in dust collectors with online cleaning or raw air volumes from 1.2 m³ to 3.5 m³.
• Pre-assembled, connected, and configured as a compact system.
• Electrical connection (230 V) with protective earthing.
• Installation of spark detectors and extinguishing nozzles in the extraction line.
• Water supply connection for the automatic extinguishing system integrated with existing water pipes.
• Ready connections for signal forwarding to control rooms for monitoring and alerts.
• Dual facing spark detectors monitor the aspiration duct to detect all sparks.
• Automatic spark extinguishing triggered by the SEC-1 control unit.
• Automatic machine shutdown to prevent fire spread.
• Audible alarms and flashing light signals alert operators instantly.
• Automatic extinguishing system: Infeed pressure of 3 bar, flow rate 60 l/min, DN25 piping.
• Cable length for spark detectors: 10 meters.
• Minimum distances between spark detectors and extinguishing system vary with airflow velocity and duct diameter: DN100: 1.50 m; DN200: 1.85 m; DN300: 2.20 m; DN400: 2.60 m
• Additional distances for other airflow velocities available on request.
